5wl and 6wl embossed Stainless Steel Sheet by SDS

Send Inquiry

Request To Call Back

5wl and 6wl embossed Stainless Steel Sheet by SDS

Get a Price/Quote

MOQ : 1 Piece

5wl and 6wl embossed Stainless Steel Sheet by SDS Specification

Recyclable
Yes

Diameter
Not applicable (sheet product)

Heat Resistance
Yes

Product Form
Sheet

Tensile Strength
520-750 MPa (304 grade)

Corrosion Resistant
Yes, excellent corrosion resistance (varies by grade)

Hardness
200 HV - 220 HV (304 grade)

Coating Type
Uncoated / Natural Stainless Steel

Size
Standard: 1250mm x 2500mm; customized sizes on request.

Material Composition %
304: Cr 18-20%, Ni 8-10.5%, Fe balance; 316: Cr 16-18%, Ni 10-14%, Mo 2-3%, Fe balance; 430: Cr 16-18%, Fe balance

Product Name
5WL & 6WL Embossed Stainless Steel Sheet by SDS

Steel Type
Stainless Steel

Steel Product Type
Embossed Sheet

Grade
304, 316, 430 (AISI Grades)

Thickness
0.6 mm - 2.0 mm

Shape
Rectangular Sheet

Steel Standard
ASTM A240 / JIS G4305 / EN 10088

Surface
Embossed (5WL & 6WL pattern)

Composition
Cr/Ni (18/8 for 304), Cr/Ni/Mo (for 316), Cr (for 430)

Application
Interior and exterior decoration, elevators, wall panels, ceiling panels, door panels, cladding, architectural finishes, kitchen equipment, and public facility surfaces.

Dimension (L*W*H)
Standard size 1250 mm x 2500 mm or customized sizes available.

Weight
Depends on thickness and dimension; typical 4.7-5.5 kg/m (for 1mm thickness).

Color
Bright/Metallic Silver (natural stainless steel color)

Material Grade
304 / 316 / 430

Finish Type
Embossed finish (5WL & 6WL) with bright surface

Usage
Decorative and functional purposes, anti-slip flooring, wall/ceiling features, architectural panels, kitchen and bathroom surfaces.

Slip Resistance
Good (embossed surface provides anti-slip property)

Maintenance
Easy to clean and maintain

Manufacturing Process
Cold rolled, precision-embossed

Packaging
Standard export seaworthy packaging (wooden crates or pallets with PE film)

Impact Resistance
High due to embossed structure

Pattern Depth
0.2 mm - 0.3 mm (typical)

Edge Type
Mill edge / Slit edge

Embossed Pattern
5WL (5 Wave Line) & 6WL (6 Wave Line)

Anti-bacterial Property
Inherent to stainless steel

Thickness Tolerance
±0.02 mm

Fire Resistance
Non-combustible

5wl and 6wl embossed Stainless Steel Sheet by SDS Trade Information

Minimum Order Quantity
1 Piece

FOB Port
MUMBAI

Payment Terms
Cash Advance (CA), Cheque, Telegraphic Transfer (T/T)

Delivery Time
1 Days

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
STANDARD

Main Export Market(s)
Asia, Australia, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
AISI, BIS, ASTM, SUS

About 5wl and 6wl embossed Stainless Steel Sheet by SDS

Stainless Steel 304 PVD SS sheets by SDS

Rosegold : Rosegold Mirror, Rosegold Hairline, Rosegold Beadblast, Rosegold Hammer, Rosegold Starlight, Rosegold Mist, Rosegold vibration, Rosegold Linen, Rosegold water ripple, Rosegold Vibration

Thickness : 0.8mm, 1mm, 1.2mm

Size : 4 Feet x 8 Feet, 4 Feet x 10 Feet , 4 feet x 12 feet

Brand : SDS (Stainless Designer Studio)

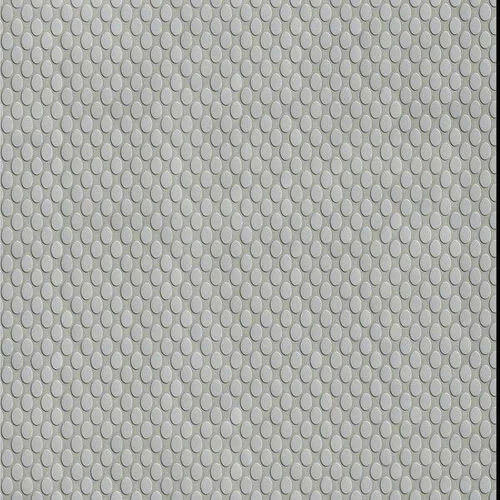

Distinctive Embossed Patterns

The 5WL and 6WL patterns provide a pronounced wave-like surface, adding both aesthetic value and functional slip resistance. These patterns make the sheets ideal for decorative panels, flooring, and places that require enhanced grip and stylish appearance.

High-Quality Stainless Steel Grades

Choose from 304, 316, or 430 stainless steel grades, each delivering specific benefits such as superior corrosion resistance, heat resistance up to 870C, and antibacterial properties inherent to stainless steel. These grades are widely recognized for durability and long service life.

Precision Manufacturing Process

Produced by cold rolling and precision embossing, these stainless steel sheets maintain tight thickness tolerances (0.02 mm) and consistent pattern depth (0.2 - 0.3 mm). Edge finishes include both mill and slit edge, catering to a wide range of installation needs.

Versatility in Applications

The embossed sheets suit various uses such as wall and ceiling panels, elevators, cladding, kitchen and public facility surfaces, and architectural finishes. Their high impact resistance and easy maintenance make them suitable for demanding commercial and residential environments.

FAQ's of 5wl and 6wl embossed Stainless Steel Sheet by SDS:

Q: How are 5WL and 6WL embossed stainless steel sheets manufactured?

A: These sheets are produced using cold rolling followed by precision embossing, ensuring consistent thickness, accurate pattern depth, and high surface quality. The process enhances both the visual appeal and the mechanical properties of the stainless steel.

Q: What are the key benefits of choosing the 5WL or 6WL embossed pattern?

A: The 5WL and 6WL patterns offer improved slip resistance, making the sheets safer for flooring and wall applications. They also improve visual aesthetics, hide scratches, and enhance impact resistance due to the embossed structure.

Q: Where can these embossed stainless steel sheets be used most effectively?

A: They are widely used in both interior and exterior settings, such as elevators, wall and ceiling panels, cladding, kitchen equipment, architectural panels, and public facility surfaces, owing to their durability, fire resistance, and attractive finish.

Q: What stainless steel grades are available for these embossed sheets, and how do they differ?

A: Sheets are available in 304, 316, and 430 grades. Grade 304 is known for excellent corrosion and heat resistance, 316 offers additional resistance to harsh environments due to added molybdenum, and 430 provides a cost-effective solution with good corrosion resistance for less demanding settings.

Q: How easy is it to maintain and clean embossed stainless steel sheets?

A: Embossed stainless steel sheets are inherently easy to clean due to the non-porous surface of stainless steel. Regular wiping with mild detergent and water is typically sufficient to maintain their bright appearance and hygiene.

Q: What sizes and packaging options are available for distribution?

A: Standard sheet sizes are 1250 mm x 2500 mm, with customized sizes available on request. Packaging is done using export-quality seaworthy materials, such as wooden crates or pallets wrapped with PE film, to ensure safe delivery.

Q: What makes these sheets suitable for high-traffic and public areas?

A: The embossed surface provides high impact and slip resistance, while the inherent antibacterial properties and excellent durability of stainless steel make the sheets ideally suited for areas that demand cleanliness, safety, and longevity.
